旋流器 apex、vortex 及备件

旋流器备件，采用不同等级的碳化硅（SiC）和／或聚氨酯制造，按客户图纸与规格生产。可供应纯陶瓷件，或带橡胶、聚氨酯背衬。两种陶瓷等级：反应烧结碳化硅（RBSiC）与无压烧结碳化硅（SiSiC），后者寿命可达 RBSiC 的 5 倍。

本系列产品 · 6

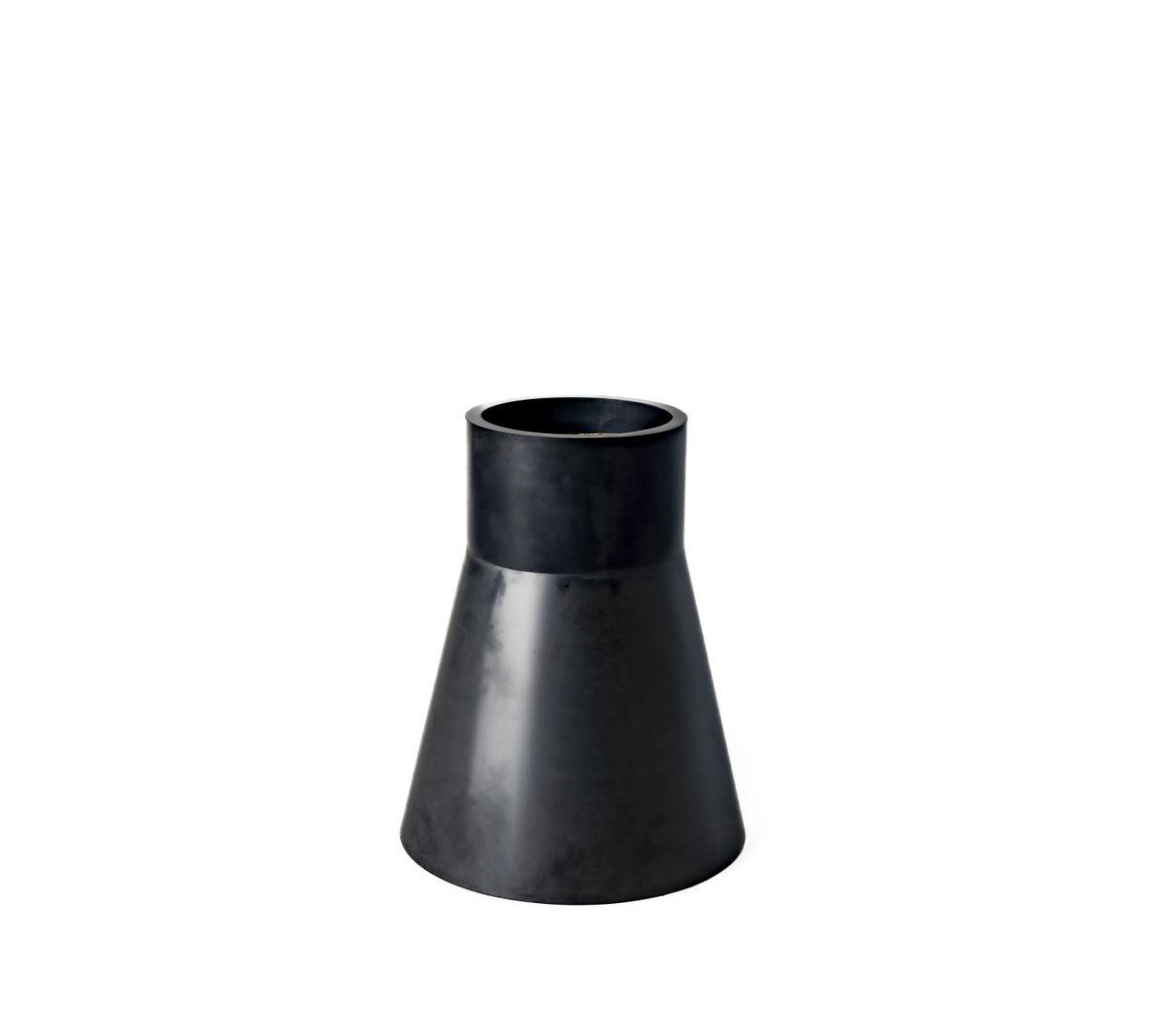

APEX — Silicon carbide discharge nozzle

The lower discharge nozzle of the hydrocyclone: the part that sets the cut point and the one that wears fastest, because the whole coarse load leaves through it. Made in silicon carbide, it holds its orifice diameter stable throughout its service life, so the cut does not drift open and the underflow stays under control. Manufactured to the customer's diameter, in RBSiC or SiSiC, bare or with rubber or polyurethane backing.

直径: A medida según diseño del cliente
材质: RBSiC · SiSiC · respaldo de caucho o poliuretano
特性: Dureza ≈ 2800 HV · resiste pulpas con alto contenido de sólidos

询价 →

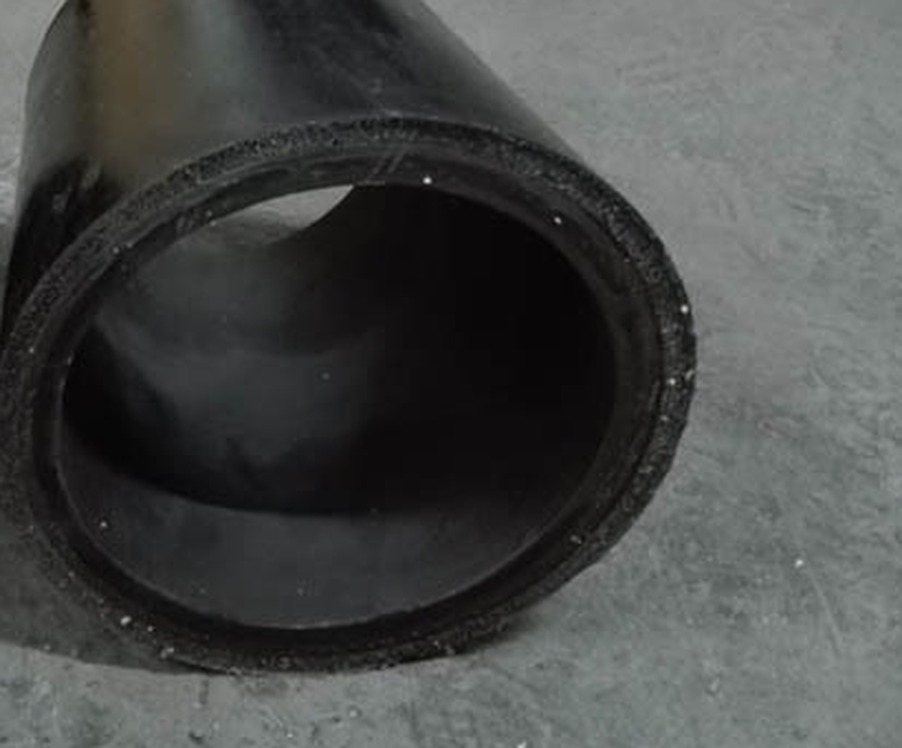

VORTEX FINDER — Overflow pipe

The central pipe through which the overflow leaves. It works with turbulent flow on both faces, and its wear shifts the cut towards coarser particles, with a direct loss of recovery in the grinding circuit. In silicon carbide it keeps its internal geometry — and therefore its classification efficiency — far longer than any metallic version. Available as bare ceramic or with an elastomeric backing.

直径: A medida según diseño del cliente
材质: RBSiC · SiSiC · respaldo de caucho o poliuretano
特性: Cerámica sola o con respaldo elastomérico · conserva la eficiencia de clasificación

询价 →

SPIGOT — Interchangeable discharge insert

Insert at the apex end, machined to size so the discharge diameter can be adjusted without replacing the whole assembly. It lets the underflow density be tuned per campaign and concentrates wear on a quick-change part instead of forcing a full cone strip-down. Ground finish across the whole working surface.

直径: A medida según diseño del cliente
材质: RBSiC · SiSiC · poliuretano
特性: Cambio rápido · ajuste de densidad de underflow

询价 →

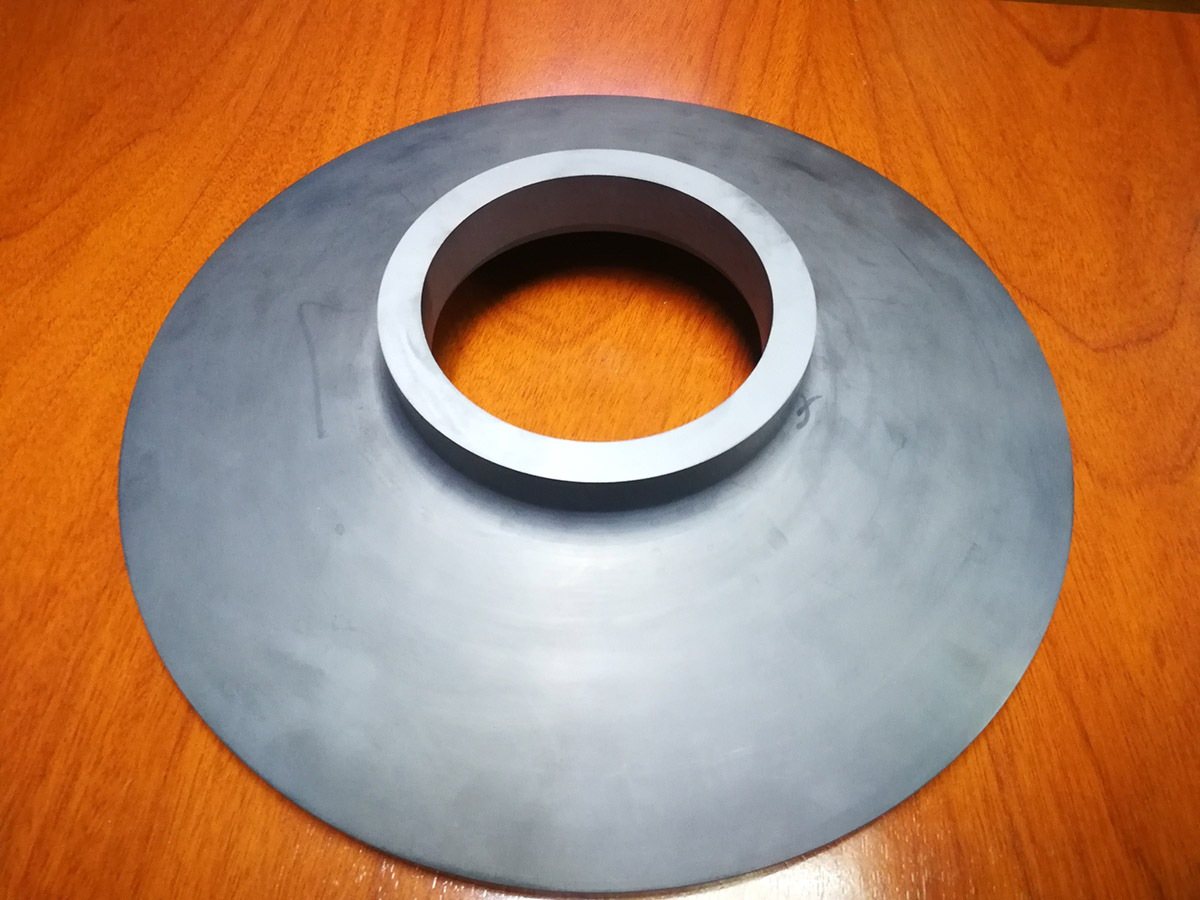

CONE & CHAMBER — Ceramic lining

Conical sections and feed chamber lined in silicon carbide, where the slurry starts to rotate and erosion is tangential and constant. The ceramic lining multiplies the interval between maintenance stops compared with rubber alone, especially in grinding circuits with high solids density and coarse particle size.

直径: A medida según diseño del cliente
材质: RBSiC · SiSiC · respaldo de caucho o poliuretano
特性: Sección cónica y cámara de alimentación · montaje por tramos

询价 →

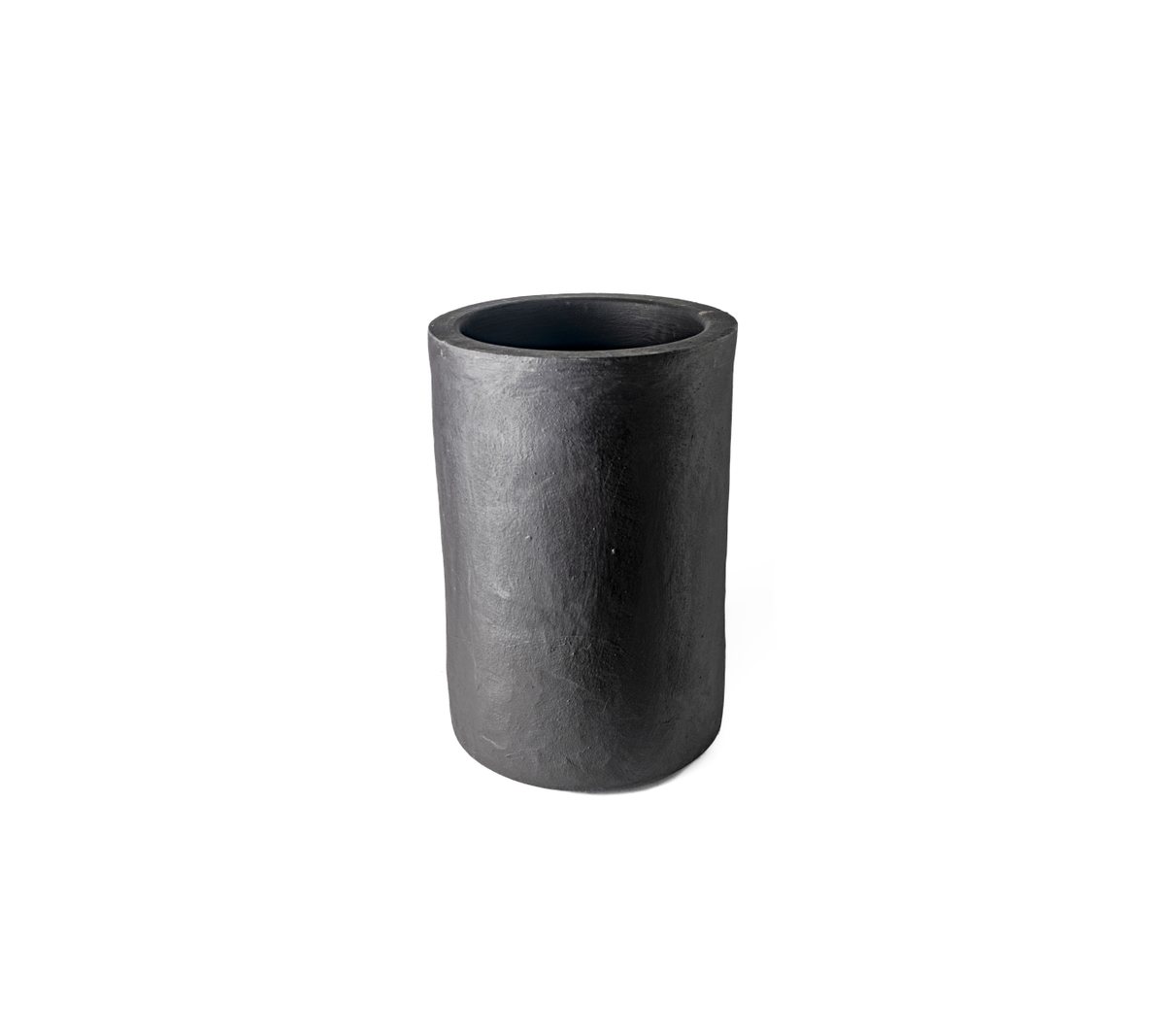

CERAMIC BUSH — Cylindrical wear insert

Cylindrical silicon carbide insert for the straight sections of the cyclone and for feed inlets, where the slurry strikes constantly and always in the same place. It replaces the metallic or rubber bush in high-abrasion duties and is supplied in RBSiC or SiSiC depending on how demanding the application is. The same part is also made in high-resistance polyurethane when the particle is fine and the attack is more erosive than abrasive.

直径: A medida según diseño del cliente
材质: RBSiC · SiSiC · poliuretano de alta resistencia
特性: Zonas rectas y bocas de alimentación · alta abrasión

询价 →

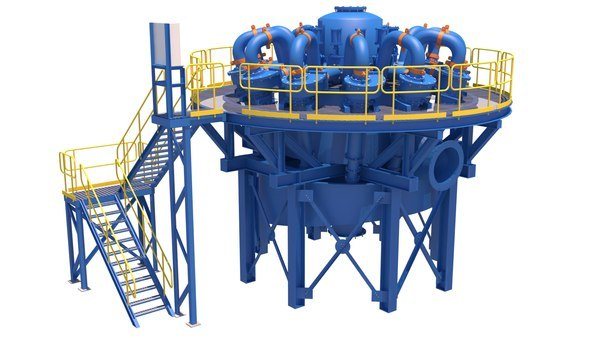

HYDROCYCLONE CLUSTER — Full spares package

Supply of the complete wear-part set for a hydrocyclone cluster: apex, vortex finders, spigots, cones and linings, consistent in grade and dimensionally identical to one another. Delivering the whole cluster from a single batch avoids the classic problem of cyclones on the same line cutting differently because each one carries spares from a different source.

材质: RBSiC · SiSiC · poliuretano
特性: Juego completo por batería · mismo lote de fabricación

询价 →

所列极限值仅供参考，切勿同时按最大值组合使用。请就您的实际工况与我们联系。
